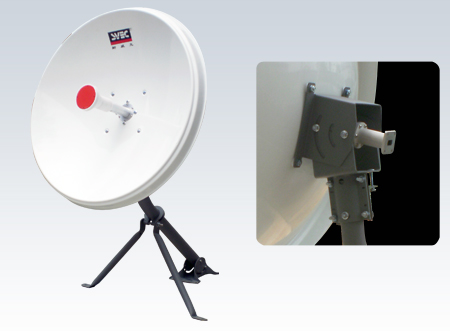

0.6m Ku-Band Ring-focus Tx/Rx Antenna
· Dual reflector provide high efficiency
· Outstanding RF performance
· Compacted design
· Fine Az/EI adjustment with stamped degree scale
· Specially formulated powder paint process offers excellent protection from weather-related corrosion
| Electrical performance | Mechanical performance | ||||
|---|---|---|---|---|---|
| Band | Ku-band | Main Reflector size | 60cm | ||
| Polarization type | Linear Orhtogonal | Sub-reflector size | 6cm | ||
|
operation Frequency |
Rx |
10.95~12.75GHz |
Reflector Material | Aluminum alloy | |
| Tx |
13.75~14.50GHz |
Reflector Thickness | ≥1.5mm | ||
| -3dB beam width | RX |
2.92° |
Reflector precision | RMS≤0.2mm | |
| Tx | 2.46° | Antanna Optics | Ring Focus | ||
| Gain | Rx | 36dBi@12GHz | Azimuth Adjustment | 360° | |
| Tx | 39.1dBi@14.25GHz | Elevation Adjustment | 0~75° | ||
| Tx/Rx Isolation |
37~56dB |
Az/El fine adjustment accurate | ±10° | ||
| VSWR | ≤13.:1 | Pipe Size | Φ42mmX1.5mm | ||
| Cross Polarization Isolation(lineal) | On axis ≥33dB 1dB beam width ≥30dB |
Installation | Suitable for ground,wall,roof mount | ||
| Effciency | 68% | Environmental performance | |||
Antenna Noise temperatura |
EI 10° | ≤55k | Wind Loading | operational | 20~35mph |
| Survival | 55mph | ||||
| temperatura | operational | -40℃~60℃ | |||
| Feed interface | Rx | WR75 | Rain | operational | 10cm/h |
| Tx | WR75 | Solar Radiation | 1000kcal/h㎡(360BTU/h/ft2) | ||
Order information
|
part No
|
Description of product
|
|---|---|
| VS-60Ku-L | 0.6M Ring-focus Ku-band Tx/Rx Antenna,Lineal Pol.w/OMT |
