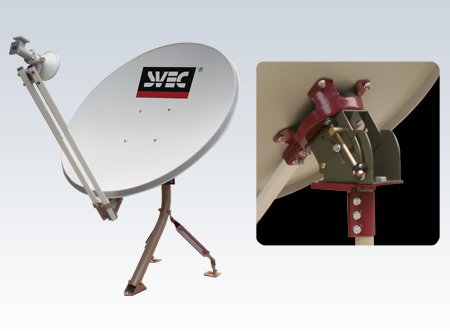

0.75m Ku-Band offset Tx/Rx Antenna

 · Precision shaped offset reflector
 · High gain and excellent side lobe performance
 · Fine Az/Ei adjustment with highly accuracy
 · Suitable for ground / wall / roof mount
 · Adjustable mast pipe supporter enable flexible installation
 · Easy to transport and deploy

Electrical performance				Mechanical performance
band		Ku		Reflector size(cm/inch)		75 cm X 81.3 cm (29.5″X 32″)
Polarization type		Linear,orthogonal  / Circular		Reflector Material		Steel
operation Frequency	Rx	10.95GHz - 12.75GHz		Reflector Thickness		≥0.8mm  (0.03″)
	Tx	13.75GHz - 14.5GHz		Reflector precision		RMS≤0.3
3dB beam width	RX	2.33°@12GHz		F/D radio		0.65
	Tx	1.95°@14.25GHz		Antanna Optics		One-piece Offset Feed Prime Focus
Mid band Gain	Rx	37.8 dBi @ 12 GHz		Azimuth Adjustment		0°~360°
	Tx	39.3 dBi @14.25GHz		Elevation Adjustment		10°~80°
First side lobe		-28 ~ -30 dB		Az/El fine adjustment range		±7°
Cross Polarization Isolation(lineal)		1 dB beam width      ≥33 dB		Az/El fine adjustment accurate		≤0.02°
Side lobe envelop Co-Pol(dbi)		2°≤θ≤20°	29-25LogθdBi	Mount Type		Elevation over Azimuth
		20°≤θ≤26.3°	-3.5dBi	Mast Pipe Size (OD×wall thickness		Φ50.8mm X 2mm     (Φ2.0″ X 0.079″ )
		26.3°≤θ≤48°	32-25LogθdBi	Environmental performance
		48°＜θ                 -15dBi		Wind Loading	operational	35mph
VSWR		≤1.3:1			Survival	125mph
Tx/Rx Isolation		37~56 dB		Temperatura	operational	-40°C~ 55°C
Effciency		68%		Rain	operational	10cm/h
Antenna Noise temperatura	10°EI	50K		Atmospheric condition		Salt, Pollutants and Contaminants as Encountered in Coastal
	20°EI	48K
	30°EI	47K		Ice	Survival	2.5cm
Feed interface	Rx	WR75		Solar Radiation		1000kcal/h㎡(360BTU/h/ft2)
	Tx	WR75		Humidty		0%~100%

Order information

part No	Description of product
VS-75Ku-L	0.75M Ku-Band offset Tx/Rx Antenna,Lineal Pol.w/OMT
