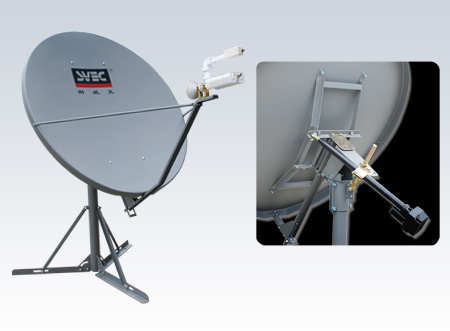

1.2m Ku-Band Tx/Rx Antenna



 · Precision molded one-pieces reflector panel
 · High efficiency and excellent electrical performance
 · Adjustable three-led pole base enable flexible installation
 · Fine Az/Ei adjustment with highly accuracy
 · Specially formulated powder paint process offers
 · Excellent protection from weather-related corrosion

Electrical performance				Mechanical performance
band		Ku		Reflector size(cm/inch)		120 cm X 130.8 cm (47″X 51″)
Polarization type		Linear,orthogonal/Circular		Reflector Material		Aluminium (LF21)
operation Frequency	Rx	10.95GHz - 12.75GHz		Reflector Thickness		≥1.8mm  (0.074″)
	Tx	13.75GHz - 14.5GHz		Reflector precision		RMS≤0.3
3dB beam width	RX	1.45°@12GHz		F/D radio		0.64
	Tx	1.23°@14.25GHz		Antanna Optics		One-piece Offset Feed Prime Focus
Main band Gain	Rx	42 dBi @ 12 GHz		Azimuth Adjustment		0°~360°
	Tx	43.5 dBi @14.25GHz		Elevation Adjustment		10°~80°
First side lobe		-28~-30 dB		Az/El fine adjustment range		±7°
Cross Polarization Isolation(lineal)		1 dB beam width	≥33 dB	Az/El fine adjustment accurate		≤0.02°
Side lobe envelop Co-Pol(dbi)		2°≤θ≤20°	29-25LogθdBi	Mount Type		Elevation over Azimuth
		20°≤θ≤26.3°	-3.5dBi	Mast Pipe Size (OD×wall thickness		Φ76mm X 3.5mm (Φ2.99″X0.14″)
		26.3°≤θ≤48°	32-25LogθdBi	Environmental performance
		48°＜θ	-15dBi	Wind Loading	operational	50mph
VSWR		≤1.3:1			Survival	125mph
Tx/Rx Isolation		37~56 dB		Temperatura	operational	-40°C~ 55°C
Effciency		68%		Rain	operational	10cm/h
Antenna Noise temperatura	10°EI	45K		Atmospheric condition		Salt, Pollutants and Contaminants as Encountered in Coastal
	20°EI	37K
	30°EI	34K		Ice	Survival	2.5cm
Feed interface	Rx	WR75		Solar Radiation		1000kcal/h㎡(360BTU/h/ft2)
	Tx	WR75		Humidty		0%~100%

Order information

part No	Description of product
VS-120Ku-L	1.2M Ku-Band offset Tx/Rx Antenna,Lineal Pol.w/OMT
