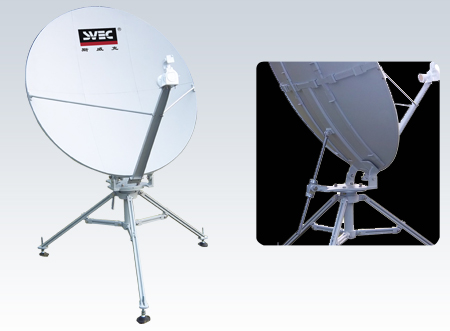

1.2m Fly-Away Ku-Band Tx/Rx Antenna

 · Quick deploy and installation
 · Pre-Assembled Tripod Base Mount
 · Alignment time reduced with improved Az/Ei Mount Design
 · Levelling feet for uneven surfaces
 · Aluminum die casting Az/Ei mount assembly
 · Withstand the harsh enviromental conditions of UV,wind,snow,ice and acid rain exposure

Electrical performance Mechanical performance
band  Ku Reflector size 120 cm
Polarization type  Linear,orthogonal/Circular Reflector Material Aluminium Alloy

operation Frequency

Rx

 12.25GHz - 12.75GHz

Reflector Thickness  1.5mm
Tx

 14GHz - 14.5GHz

Reflector precision  RMS≤0.5mm
Side lobe envelop
Co-Pol(dbi)

1°≤θ≤48°

29-25LogθdBi F/D radio  0.64
48°<θ -10dBi Antanna Optics  Offset Feed Prime Focus
Mid band Gain Rx  42.8+20log(F/14.25)dBi Azimuth Adjustment  0°~360°
Tx  41.5+20log(F/12.25)dBi Elevation Adjustment  10°~70°
First side lobe    ≤-14 dB Az/El fine
adjustment range
 ±7°
Cross Polarization Isolation(lineal) 1 dB beam width     ≥30 dB Az/El fine adjustment accurate  ≤0.02°
Environmental performance
VSWR ≤1.25:1 Wind Loading operational  27mph
Effciency
 65% Survival  125mph
Offset Angel  24.65° Temperatura operational   -30°C~ 55°C
F  720mm Rain operational  10cm/h
Tx/Rx Isolation  85 dB  Atmospheric condition   Salt, Pollutants and Contaminants as Encountered in Coastal
Feed interface Rx  WR75 Ice Survival  2.5cm
Solar Radiation 1000kcal/h㎡(360BTU/h/ft2)
Tx  WR75 Humidty 0%~100%

Order information

part No
Description of product
VS-120Ku-F 1.2M Ku-Band Fly-away Tx/Rx Antenna,Lineal Pol.w/OMT
