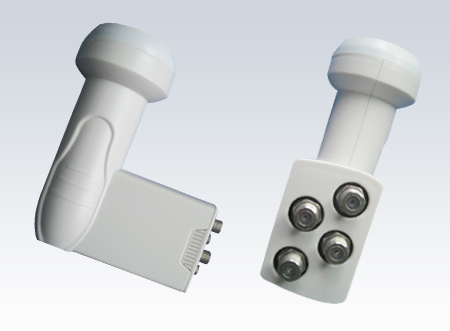

SKF-D
| Model |
SKF-D |
| Input Freq. Range (R.F.) |
Low-Band |
10.7~11.7GHz |
| High-Band |
11.7~12.75GHz |
| Output Freq. Range ( I.F.) |
Low-Band |
950~1950MHz |
| High-Band |
1100~2150MHz |
| Local Frequency |
Low-Band |
9.75GHz |
| High-Band |
10.6GHz |
| Reflector Type |
Offset |
| F/D Ratio |
0.6 |
| Feedhorn Mounting |
40mm(Standard Size) |
| LO Initial Accuracy |
±1.0MHz |
| LO TEMP. Drift |
±3.0MHz |
| Noise Figure |
0.8dBi |
| Output VSWR |
2:1 |
| LO Phase Noise |
@ 1K Hz |
-55 dBc/Hz |
| @ 10K Hz |
-80 dBc/Hz |
| @ 100K Hz |
-95 dBc/Hz |
| Convertion Gain |
55 dB(Typ) |
| Gain Flatness Over full Band |
8 dB(Typ) |
| Gain Flatness @ Any 26MHZ Bandwidth |
±0.75 dB |
| Cross Pol. Isolation |
18 dB |
| Image Rejection |
40 dB |
| O/P 1dB Compreession Point |
0 dB |
| Operating Voltage |
Vertical |
11~14.5 VDC |
| Horizontal |
16~20 VDC |
| Band Switchin |
Vertical |
22 Khz |
| DC Current Consumption ( 11 ~ 20V ) |
110 mA |
| Operation Temperature |
-30~60℃ |
| Storage Temperature |
-40~70℃ |
| Output Impedance ( to STB) |
75Ω F-Connector |
